State of the Art, GUI Driver Console Software for Remotely Driven EV
We develop special purpose GUI focus software for specialized applications like Electric Vehicles with Graphical consoles similar to automobile console that aids in remote driving of EV.

Background

The hardware and software for this EV was developed for a customer who wanted to build this platform. The "Drive by Wire" Hardware and Software used on this chassis is an IP developed and owned by Ideas Unlimited, Mysuru.


Main Drive Console - All controls similar
to a regular automobile

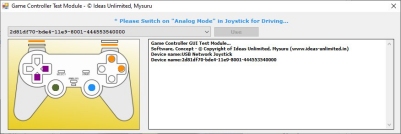

Joystick Screen for Calibration and Verification

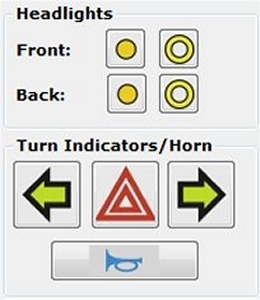

Headlights/Turn Indicator and Blinker controls
similar to that of a regular automobile.

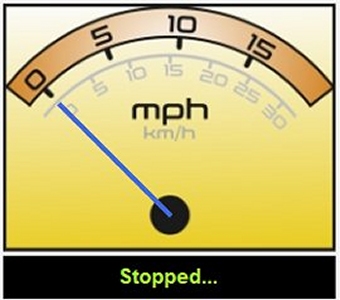

Custom GUI Speedometer developed that could
display speed in both kmph/mph

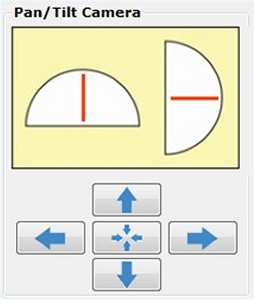

Pan-Tilt camera control with Pan and Tilt
position indicator, along with Reset

Manual Brakes control. Vehicle also had
software to apply disc brakes when stopped
or in the event of a connectiond drop!

Speed Control similar to gear in a shift stick

Connectivity management!
The hardware and software developed for this EV had capability not only for high quality drive control, but also for controlling disk brakes, Lights, indicators, horn, blinkers on board.

We call this technology we developed as:

"Drive By Wire" Technology

It can be further extended to add up LIDAR/RADAR to do better assisted remote driving for enhanced safety. The framework can work with a variety of Remote control options including RF Communication, through 5G Internet, though at the time of building this prototype only 4G was available.

Below are some of the Safety features of this technology.

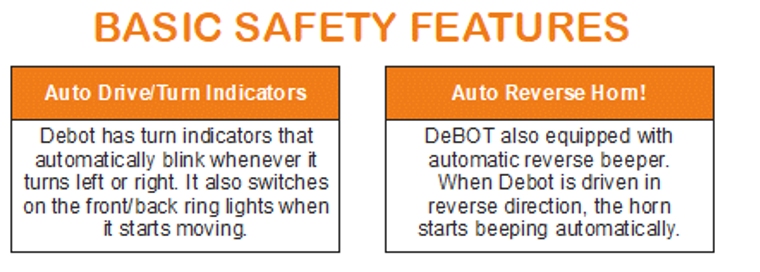

Basic safety features!

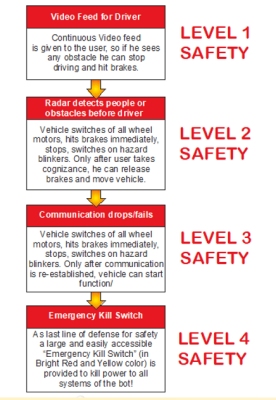

Advanced safety features!

Further details on this project of vehicle cannot be shared on website due to agreement/NDA with our customer. Software is copyright and intellectual property of our R&D lab Ideas Unlimited, ಮೈಸೂರು

How it was built?

Click on left/right buttons to scroll through the pictures and description to see how it was built!
