Dragon's Den at GRS Fantasy Park, Mysuru
A scary themed show where skeletons, mummies rise up and the grand finale will be a 20 feet tall Dragon rising out of water to scare the wits out of the visitors - runs on electronics and software made by us!

Background

Dragon's Den show at GRS Fantasy Park, Mysuru is one of the scariest shows in their park. It consists of five separate areas, through which visitors pass through including a lift that takes people underground, a scary cave of horrors with a grand finale of a 20 feet tall dragon coming out of water to scare visitors on bridge!

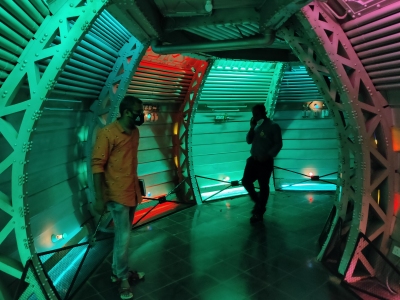

One of the pathways to pass through into the Dragon's den!

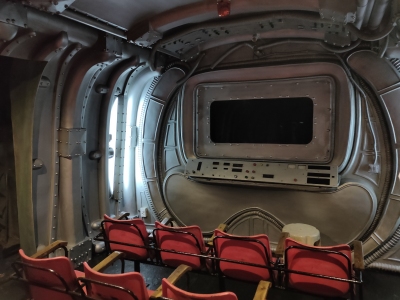

Lift that takes visitors underground to the Dragon's den!

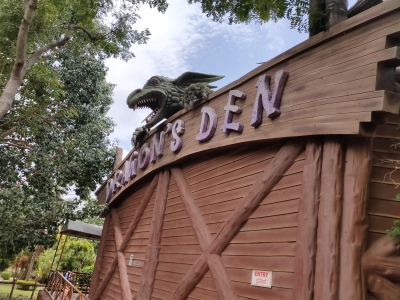

Outside view of the Dragon's Den show at GRS Fantasy Park

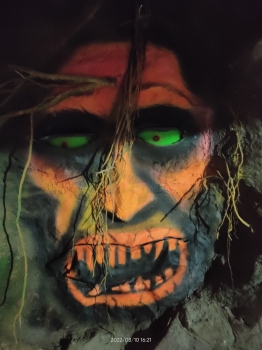

Scary Talking wall you must pass through to meet the dragon!

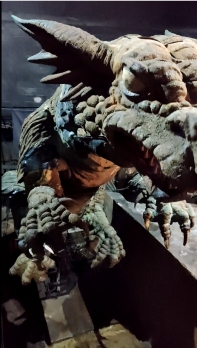

The Dragon!

This ride was developed nearly 20 years ago by a company in Kolkatta, and most of its control electronics were obsolete and outdated. Ideas Unlimited, Mysuru was tasked with reviving the ride with brand new electronics, easier command and control center which can be operated with very little training, while ensuring full Safety of the show/ride.


GRS Snow Park, Mysuru

GRS Fantasy Park, Mysuru

We took about 5-6 months to reverse engineer the hydraulic /pneumatic /electrical lines and come out with brand new, more reliable and maintainable systems with custom software developed by Ideas Unlimited to control the full show.
Video of the Dragon's Den at work!

First, we mapped the existing system, identified which parts are running on Hydraulics, pneumatics and electrical drives. Then the wiring was individually tested manually and documented and then began design of our new hardware and complete control system from the scratch!

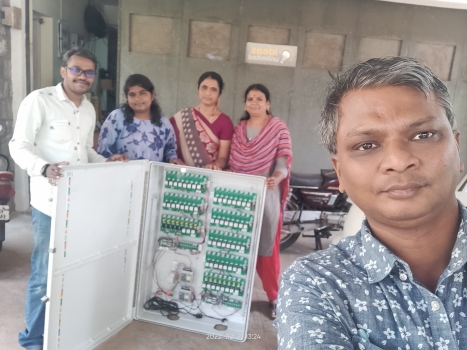

Part of the main control electronics for the entire show!

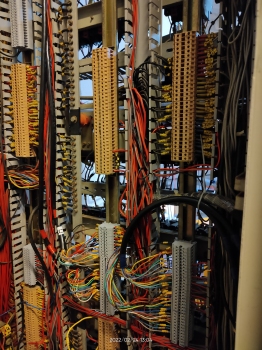

Reorganizing the wiring systems to take control of the full show!

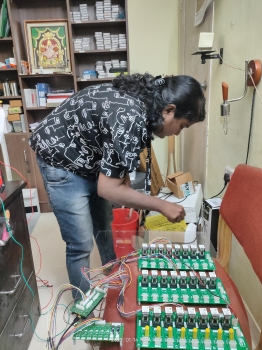

Hardware being tested in our lab before deployment at Park

Our proprietary software that controls the entire Dragon's den show!

Our modular embedded software with full scale diagnostics!

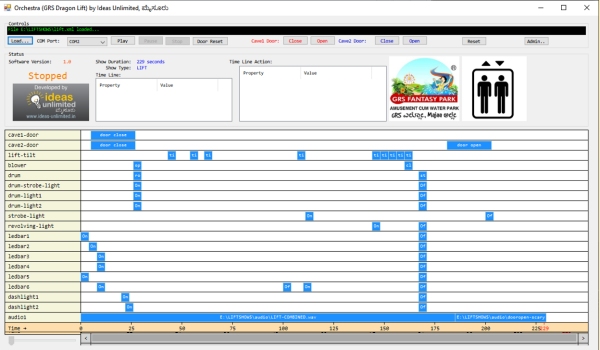

Our proprietary software that controls the lift ride to the dragon's den.

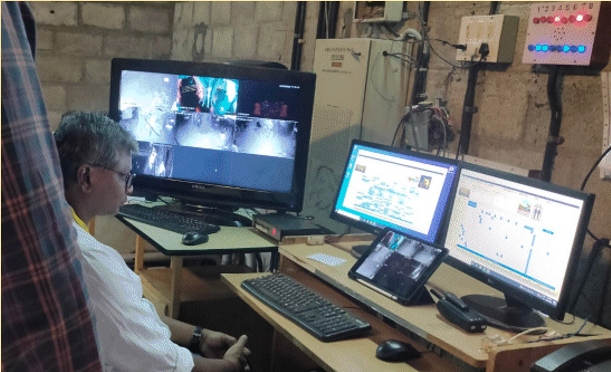

The brand new command control center consists of two PCs with our hardware.
Finally the result is there to see! The ride/show is now up and live at the park again!

How it was built?

Click on left/right buttons to scroll through the pictures and description to see how it was built!
