A Bar graph displays energy produced while you pedal your exercycle.
Background
This exercycle can produce energy and also measure it as you pedal it. The amount of energy produced is quantified and displayed as a bar graph so curious visitors/students who visit the Energy Exhibition can pedal and experience how energy is produced as they pedal the exercycle!
Deenabandhu Trust, Chamarajanagar, Karnataka
This project was developed for an NGO which is into building Scientific Exhibitions, Museums and upgrade Science Demonstration infrastructure in schools called Deenabandhu. As part of an Energy themed museum they were setting up this exhibit was developed by Ideas Unlimited, Mysuru.
Deenabandhu is a charitable Non-Profit Organization located in Chamarajnagar. Deenabandhu works towards the education and rehabilitation of orphan, destitute and estranged children. The trust is also into Science, innovation and teaching Science to school children and other activities.
Exercycle Demonstration video that demonstrates energy generated in a bar graph form! Now installed at an Energy related Exhibhition/Museum.
This system consists of an energy producing/speed measurement circuit which calculates the energy produced by the person pedalling the system. It is then subjected to a logarithmic formula using which the final bar graph output is displayed in real time.
Exercycle Bar Graph Electronics under Development and Testing.

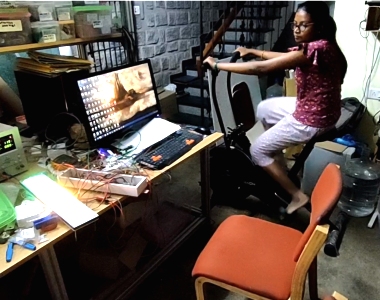

Exercycle integrated to electronics and testing in progress.
Finished Exercycle being tried out.
The more effort a person puts in the more energy is produced! People visiting the science gallery can also compete with each other on how much energy they can produce and how fast, and how long!
How it was built?
Click on left/right buttons to scroll through the pictures and description to see how it was built!
