Heavenly Air - Ionic Air Purifiers for USA/Canada market
This product was developed in 2013 for US/Canada Market. Ion generator based air purifier for use in US/Canada homes that fit directly to the heating duct vents. No longer in production.

Background

This is an Ionic Air Purifier system that fits conveniently to the Air vents in homes (register) and has several advantages over conventional Air Purifiers placed We started producing a pilot lot of this product around June 2014.
A new apprentice in our lab, was only thrilled to build such a bell. It was developed and fabricated in our lab. The cast iron grill we sourced to be made part of this bell gave the added vintage appeal.

Finished Standard Product of Heavenly Air

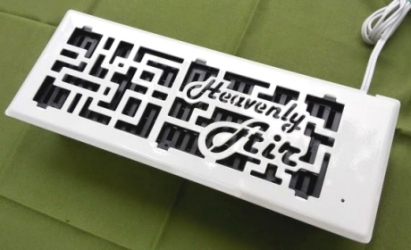

White powder coated metal grill on top.

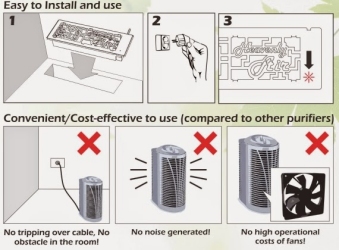

Product usage instructions on the back
side of the carton.

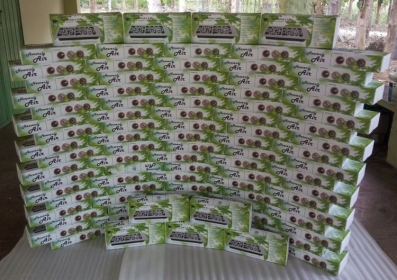

First lot of Heavenly Air built,
tested, packed and kept ready for
dispatch.

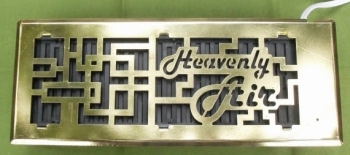

Premium Brass Finish top (Brass Plated MS)
variant of Heavenly air

Product and Technology Description

The bell has a cam like mechanism to give a yank to the bell's clapper. Also, it has a sensor to control the motor to park the cam mechanism exactly at a position where it is ready to fire for the next ring. The entire system is controlled by a small 8-bit microcontroller.

A geared motor operates the cam like mechanism, which in turn rings the bell. The Bell can be either single shot or continuous ringing if button is held down. The bell incorporates a sensor to ensure cam is adjusted and left in just exact position for correctly starting the next ring.
