TicTacToe Pad
This table top mat with 3X3 cell is pawn aware and can detect the pawn uniquely. It is used in gaming as well as medical applications. Each cell has Software controlled RGB which can be set to any color! It also has Wifi/USB Communcation. .

Background

Our lab developed this novel table top 3X3 matrix pad, which is pawn aware. The mat can know the exact pawn placed in the cell, and can beam the data to the host computer. This technology was developed for one of our customer who is into gaming, medical and related technologies.

The easiest thing that can be built using this is a TIC-TAC-TOE (Or XO) game where two set of pawns color coded can be used to play and board detecting illegal move or winner automatically! Simultaneously all the 9 cells of the pad have RGB lights, which can be set to any color by the host computer that controls it.

Apart from this, this tech finds application in some of the Neural rehabilitation applications, for which our customer is developing the downstream software and further systems necessary.

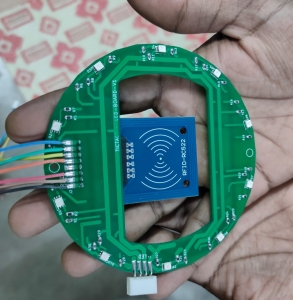

Specially designed/fabricated circular PCB for each cell.

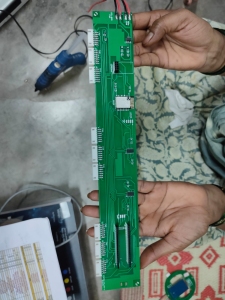

Control PCB

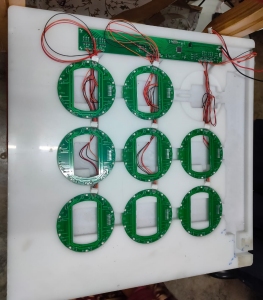

PCBs getting assembled in its place in the Tic-tac-toe pad.

This tic-tac-toe pad is capable of streaming pawn info in real time through Wifi/USB modes to the host computer.

Salient Features:


-->
